Login logout

Login in authentication consists of the following steps.

Login¶

The login in authentication consists of the following steps.

1. Automatic login and implicit login
2. Explicit login
3. Check IdP account logged in on the device
4. Guest login

Authv4Helper is a class that performs a series of processes related to login and is configured to navigate to the appropriate screen based on the response value. Please refer to the following when configuring the login.

• If the game is primarily aimed at children under the age of 13, Google Play game services cannot be applied, and implicit login in Google builds cannot be used. For more details, refer to the Quality Checklist for Google Play Games Services.
  • Implicit login for Google Play games should only be attempted during the first login. For more details, refer to the Google developer guide 1.5 Remember if players declined signing-in.

Automatic login and implicit login¶

Automatic login¶

This means that the user logs in automatically by linking their Apple Game Center account on iOS and their Google Play Games account on Android without selecting a login method. It implements automatic login and performs implicit login if automatic login fails.

To use automatic login in the iOS environment, you need to add the Game Center Entitlement, which Unity automatically adds through Unity PostProcess if you checked the 'Apple GameCenter' Dependency. In iOS Native, Xcode automatically adds the Game Center Entitlement.

To use automatic login in the iOS environment, you need to add the Game Center Entitlement. In Unity, if you have checked the 'Apple GameCenter' dependency, it will automatically add the entitlement through the Unity PostProcess. For iOS Native, Xcode will automatically add the Game Center Entitlement.

Offline mode¶

In Hive SDK v4 23.1.0 and above, the automatic login feature (AuthV4.signIn using ProviderType.AUTO, or AuthV4.Helper.signIn) can be provided even if the user device is not connected to the network when the app is launched. To use offline mode, please follow the instructions below.

1. You must have successfully executed the app online for explicit, implicit, guest, or custom login, and received playerId and playerToken.

From the perspective of the app developer, it is necessary to have successfully executed AuthV4.Helper.signIn, AuthV4.showSignIn, or AuthV4.signInWithAuthKey at least once while online and received playerId and playerToken as a callback. From the user's perspective, the user must have successfully logged into the app at least once while their device is connected to the network. However, if the user's account was suspended or restricted the last time they attempted to log in while online, the user will not be able to log in even in offline mode.

1. Activate offline mode in Hive console App Center > Project Management > Game Details > Hive Product Settings.

Automatic login in Windows environment¶

The Windows environment also supports automatic login, which can be activated or deactivated in the Hive Console App Center. However, automatic login in Windows behaves differently than on mobile. The differences in automatic login on Windows are as follows.

• On mobile, the login state is always maintained automatically after logging in, but on Windows, it is only maintained if the user activates the "Keep me logged in" checkbox (displayed at the bottom of the IdP list on the login UI). In other situations, the login state is not maintained.
• When executing AuthV4Helper.Connect, on mobile, if switching to a new account, the new account will also maintain the automatic login state, but on Windows, if switching to a new account, the new account will not maintain the automatic login state.

Implicit sign-in¶

• Implicit Login Flow

AuthV4.Helper.signIn attempts to automatically log in using the authentication token key of the PlayerID. If there is no previously logged-in authentication token key, it will automatically log in to Apple Game Center for iOS and Google Play Games for Android. If the login fails, it will configure the appropriate login screen based on the response value.

When using the AuthV4Helper class

If a user running the game rejects the implicit login attempt during PGS, it will remember this and will no longer attempt implicit login. Even if automatic login is possible while the player session is maintained, it will continue to remember the state of the implicit login being rejected. This content is based on the Google Play Games Services guide.

The following is an example code that performs automatic login.

// Attempt to sign in (signIn) with Hive SDK
    AuthV4.Helper.signIn (delegate (ResultAPI result, AuthV4.PlayerInfo playerInfo) {

    if (result.isSuccess()) {
        // Login success
    } else if (result.needExit()) {
        // TODO: Implement app exit functionality
        // e.g.) Application.Quit();
    } else {
        switch (result.code) {
            case ResultAPI.Code.AuthV4ConflictPlayer:
                // Account conflict
                break;
            case ResultAPI.Code.AuthV4HelperImplifiedLoginFail:
                // Failed implicit login
                // ex) AuthV4.showSignIn(...);
                break;
            default:
                // Other exceptions
                break;
        }
    }
});

#include "HiveAuthV4.h"

// Attempt to log in (signIn) to Hive SDK
FHiveAuthV4::Helper::SignIn(FHiveAuthV4HelperDelegate::CreateLambda([this](const FHiveResultAPI& Result, const TOptional<FHivePlayerInfo>& PlayerInfo) {
        if (Result.IsSuccess()) {
                // Login successful
        } else if (Result.NeedExit()) {
                // TODO: Implement app exit functionality
                // e.g. UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
        } else {
                switch (Result.Code) {
                        case FHiveResultAPI::ECode::AuthV4ConflictPlayer:
                                // Account conflict
                                break;
                        case FHiveResultAPI::ECode::AuthV4HelperImplifiedLoginFail:
                                // Failed implicit login
                                // ex) FHiveAuthV4::ShowSigIn()
                                break;
                        default:
                                // Other exceptions
                                break;
                }
        }
}));

// Attempt to sign in (signIn) with Hive SDK
    AuthV4::Helper::signIn([=](ResultAPI const & result, std::shared_ptr playerInfo) {

    if (result.isSuccess()) {
        // Login successful
    } else if (result.needExit()) {
        // TODO: Implement app exit functionality
        // Cocos2d-x engine users
        // e.g. exit(0);
        // Unreal engine users
        // e.g. UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
    } else {
        switch (result.code) {
            case ResultAPI::AuthV4ConflictPlayer:
                // Account conflict
                break;
            case ResultAPI::AuthV4HelperImplifiedLoginFail:
                // Implicit login failed
                // ex) AuthV4.showSignIn(...);
                break;
            default:
                break;
        }
    }
});

// Attempt to sign in with Hive SDK
 AuthV4.Helper.signIn(object : AuthV4.Helper.AuthV4HelperListener {
    override fun onAuthV4Helper(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {
            if (result.isSuccess) {
                    // Login successful
            } else if (result.needExit()) {
                    // TODO: Implement app exit functionality
                    // e.g. exitProcess(0)
            } else {
                    when (result.code) {
                            ResultAPI.Code.AuthV4ConflictPlayer -> {
                                    // Account conflict
                            }
                            ResultAPI.Code.AuthV4HelperImplifiedLoginFail -> {
                                    // Failed implicit login
                                    // ex) AuthV4.showSignIn(...);
                            }
                            else -> {
                                    // Other exceptional situations
                            }
                    }
            }
    }
    })

// Hive SDK AuthV4 authentication UI request
    AuthV4.showSignIn(new AuthV4.AuthV4SignInListener() {
    @Override
    public void onAuthV4SignIn(ResultAPI result, AuthV4.PlayerInfo playerInfo) {

        if (result.isSuccess()) {
            // Authentication successful
            // playerInfo: Authenticated user information
            // Example of retrieving email information
            if(playerInfo != null) {
                for (Map.Entry<AuthV4.ProviderType, AuthV4.ProviderInfo> entry : playerInfo.getProviderInfoData().entrySet()) {
                    AuthV4.ProviderInfo providerInfo = entry.getValue();
                    if (providerInfo.getProviderEmail() != "") {
                        String email = providerInfo.getProviderEmail();
                        break;
                    }
                }
            }
        }
        else if (result.needExit()) {
            // TODO: Implement app exit functionality
            // e.g. System.exit(0);
        }
    }
});

var email = String()
    // Hive SDK AuthV4 authentication UI request
    AuthV4Interface.showSignIn { (result, playerInfo) in

    if result.isSuccess() {
        // Authentication successful
        // playerInfo: Authenticated user information
        // Example of retrieving email information
        if let playerInfo = playerInfo {
            // Searching for providerInfo with providerEmail (currently logged-in provider)
            for key in playerInfo.providerInfoData.keys {
                if let providerInfo = playerInfo.providerInfoData[key],
                    providerInfo.providerEmail.count > 0 {
                    // providerEmail != ""
                    email = providerInfo.providerEmail
                    break
                }
            }
        }
    } else if result.needExit() {
        // TODO: Implement app exit functionality
        // e.g. exit(0)
    }
}

// Attempt to sign in (signIn) with Hive SDK
[[HIVEAuthV4 helper] signIn:^(HIVEResultAPI *result, HIVEPlayerInfo *playerInfo) {

        if (result.isSuccess) {
                // Login successful
        }
        else if (result.needExit) {
                // TODO: Implement app exit functionality
                // ex) exit(0);
        }
        else {
                switch (result.code) {
                        case kAuthV4ConflictPlayer:
                                // Account conflict
                                break;
                        case kAuthV4HelperImplifiedLoginFail:
                                // Implicit login failed
                                // ex) [HIVEAuthV4 showSignIn:^(HIVEResultAPI *result, HIVEPlayerInfo *playerInfo) {
                                // // do something...
                                // }];
                                break;
                        default:
                                // Other exceptions
                                break;
                }
        }
        }];

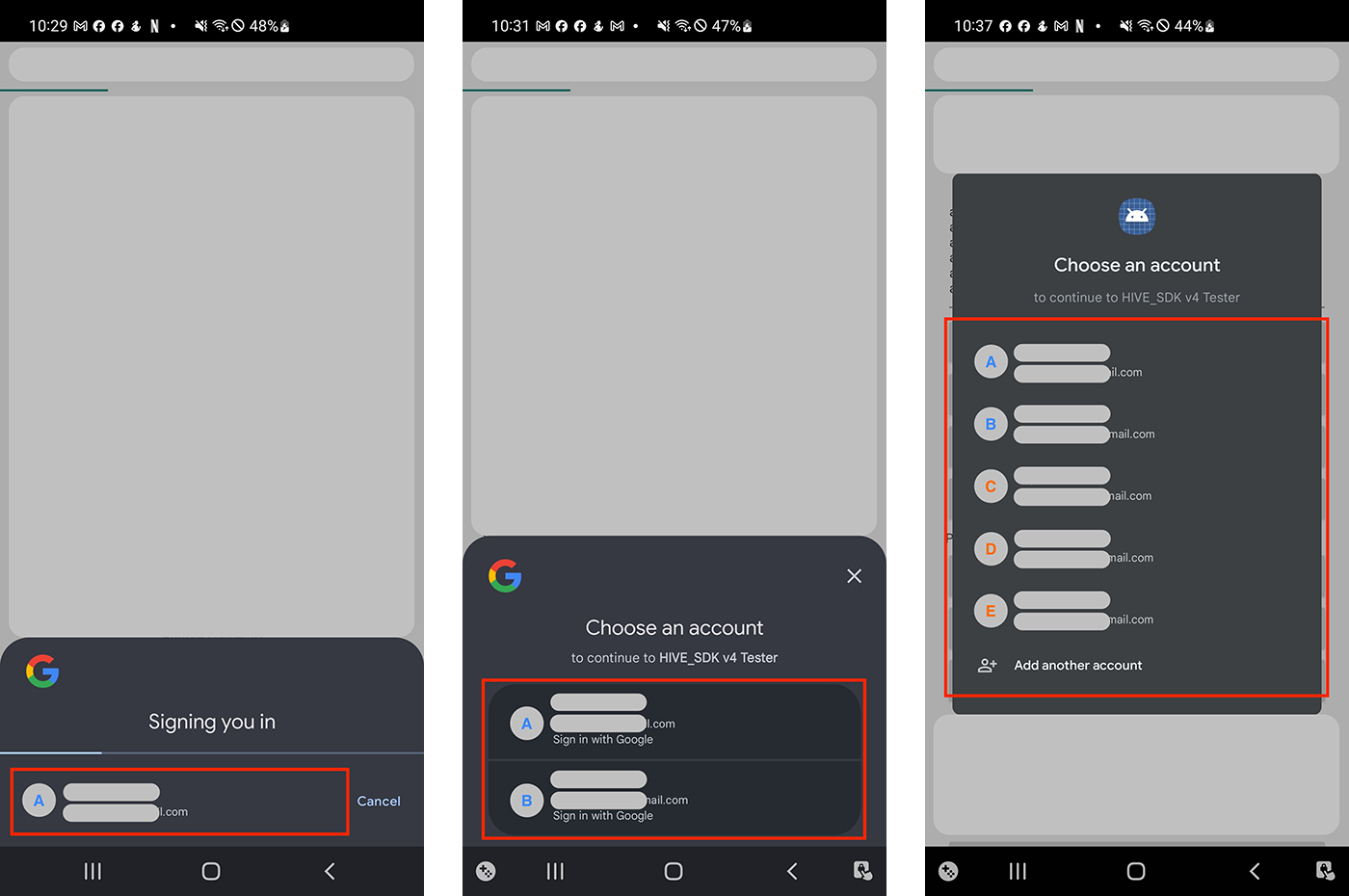

Implicit login behavior: Mobile¶

Implicit login on mobile (such as Hive SDK Unity Android for Android/iOS platforms) (AuthV4.Helper.signIn) prompts the user with a dialog asking whether to log in with the last logged-in account in case of an account conflict when logging in with a different account after the initial login.

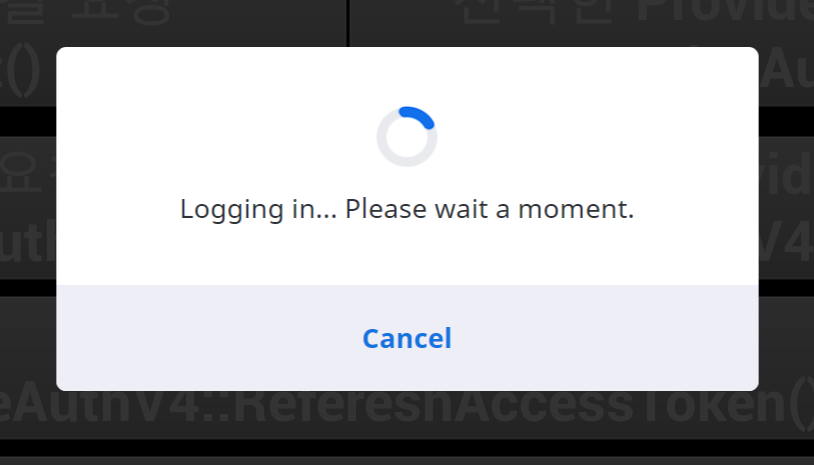

Implicit login behavior: PC¶

Implicit login on PC (Windows platforms like Hive SDK Unity Windows) (AuthV4.Helper.signIn) automatically logs in with the last logged-in account when logging in with a different account after the first login. Account conflicts do not occur.

Explicit login¶

Explicit login refers to the process where a user selects the IdP to authenticate. If both automatic login and implicit login fail, implement explicit login to be performed when the user clicks on the title after moving to the game title screen.

The explicit login UI can either use the UI provided by the Hive SDK or be customized using the IdP list returned as a result after the Hive SDK initialization is complete. If you are customizing the UI, please refer to the Explicit Login Customizing section.

The IdP list is controlled and provided by the Hive platform according to the policies of each country. For example, in China, Google Play games and Facebook, as well as guests, are not provided.

Explicit login screenshot¶

IdP selection UI provided by the SDK

When implementing using the UI provided by the SDK¶

To implement explicit login using the UI provided by the SDK, you can simply call the showSignIn() method to invoke the IdP list UI.

// Hive SDK AuthV4 authentication UI request
AuthV4.showSignIn((ResultAPI result, AuthV4.PlayerInfo playerInfo)=>{
if (result.isSuccess()) {
        // Authentication successful
        // playerInfo : Authenticated user information

        // Example of retrieving email information
        foreach (KeyValuePair<AuthV4.ProviderType, AuthV4.ProviderInfo> entry in playerInfo.providerInfoData) {

                AuthV4.ProviderInfo providerInfo = entry.Value;
                if(providerInfo.providerEmail != null && providerInfo.providerEmail != "") {
                        string email = providerInfo.providerEmail;
                        break;
                }
        }
}
else if (result.needExit()) {
        // TODO: Implement the app exit feature
        // e.g.) Application.Quit();
}
});

#include "HiveAuthV4.h"

// Hive SDK AuthV4 authentication UI request
FHiveAuthV4::ShowSignIn(FHiveAuthV4OnSignInDelegate::CreateLambda([this](const FHiveResultAPI& Result, const FHivePlayerInfo& PlayerInfo) {
        if (Result.IsSuccess()) {
                // Authentication successful (PlayerInfo: authenticated user information)

                // Example of retrieving email information
                for (const auto& ProviderInfoEntry : PlayerInfo.ProviderInfoData) {
                        FHiveProviderInfo ProviderInfo = ProviderInfoEntry.Value;
                        FString Email = ProviderInfo.ProviderEmail;
                }
        } else if (Result.NeedExit()) {
                // TODO: Implement app exit functionality
                // Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
        }
}));

// Hive SDK AuthV4 authentication UI request
AuthV4::showSignIn([=](ResultAPI const & result, PlayerInfo const & playerInfo) {
if (result.isSuccess()) {
        // Authentication successful
        // playerInfo: Authenticated user information

        // Example of retrieving email information
        for(auto it = playerInfo.providerInfoData.begin(); it != playerInfo.providerInfoData.end(); ++it) {
                hive::ProviderInfo providerInfo = it->second;
                if(!providerInfo.providerEmail.empty()) {
                        std::string email = providerInfo.providerEmail;
                        break;
                }
        }
}
else if (result.needExit()) {
        // TODO: Implement app exit functionality
        // For Cocos2d-x engine users
        // Example) exit(0);
        // For Unreal engine users
        // Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
}
});

// Hive SDK AuthV4 authentication UI request
AuthV4.showSignIn(object : AuthV4.AuthV4SignInListener {
override fun onAuthV4SignIn(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {
        if (result.isSuccess) {
                // Authentication successful
                // playerInfo: Authenticated user information

                // Example of retrieving email information
                playerInfo?.let {
                        for ((key, value) in it.providerInfoData) {
                                var providerInfo: AuthV4.ProviderInfo = value
                                if(providerInfo.providerEmail.isNotEmpty()) {
                                        val email = providerInfo.providerEmail
                                        break
                                }
                        }
                }
        } else if (result.needExit()) {
                // TODO: Implement app exit functionality
                // e.g.) exitProcess(0)
        }
}
})

// Hive SDK AuthV4 authentication UI request
AuthV4.showSignIn(new AuthV4.AuthV4SignInListener() {
@Override
public void onAuthV4SignIn(ResultAPI result, AuthV4.PlayerInfo playerInfo) {

        if (result.isSuccess()) {
                // Authentication successful
                // playerInfo: authenticated user information

                // Example of retrieving email information
                if(playerInfo != null) {
                        for (Map.Entry<AuthV4.ProviderType, AuthV4.ProviderInfo> entry : playerInfo.getProviderInfoData().entrySet()) {
                                AuthV4.ProviderInfo providerInfo = entry.getValue();
                                if (providerInfo.getProviderEmail() != "") {
                                        String email = providerInfo.getProviderEmail();
                                        break;
                                }
                        }
                }
        }
        else if (result.needExit()) {
                // TODO: Implement app exit functionality
                // Example) System.exit(0);
        }
}
});

var email = String()

// Hive SDK AuthV4 authentication UI request
AuthV4Interface.showSignIn { (result, playerInfo) in

if result.isSuccess() {
        // Authentication successful
        // playerInfo: Authenticated user information

        // Example of retrieving email information
        if let playerInfo = playerInfo {
                // Searching for providerInfo with providerEmail (currently logged-in provider)
                for key in playerInfo.providerInfoData.keys {
                        if let providerInfo = playerInfo.providerInfoData[key],
                                providerInfo.providerEmail.count > 0 {
                                // providerEmail != ""
                                email = providerInfo.providerEmail
                                break
                        }
                }
        }
} else if result.needExit() {
        // TODO: Implement app exit functionality
        // Example) exit(0)
}
}

__block NSString* email = @"";

// Hive SDK AuthV4 authentication UI request
[HIVEAuthV4 showSignIn:^(HIVEResultAPI *result, HIVEPlayerInfo *playerInfo) {

if([result isSuccess]){
        // Authentication successful
        // playerInfo: Authenticated user information

        // Example of retrieving email information
        if(playerInfo != nil) {
                // Searching for providerInfo with providerEmail (currently logged in provider)
                for (NSString* key in playerInfo.providerInfoData.allKeys) {
                        HIVEProviderInfo* providerInfo = playerInfo.providerInfoData[key];
                        if (providerInfo != nil && providerInfo.providerEmail.length > 0) {
                                // providerEmail != ""
                                email = providerInfo.providerEmail;
                                break;
                        }
                }
        }
} else if ([result needExit]) {
        // TODO: Implement app exit functionality
        // e.g. exit(0);
}
}];

Explicit login customization¶

The customizable UI for explicit login can be implemented using providerTypeList. The providerTypeList is the response callback handler returned when calling the AuthV4.setup() method for the purpose of initializing the Hive SDK, or when calling the AuthV4.Helper.getIDPList() method after initialization. This feature is used when you want to display the login screen according to the game UI or primarily expose integration with specific IdPs. After implementing the customizable UI, call the signIn() method with the desired ProviderType based on the user's action to implement the login.

• UI example screenshot showing only the Facebook integration button on the login screen

The following is an example source code assuming a situation where the user selects Google login in a customized explicit login UI.

using hive;
    AuthV4.signIn(AuthV4.ProviderType.GOOGLE, (ResultAPI result, AuthV4.PlayerInfo playerInfo) => {
        if (result.isSuccess()) {
            // Call successful
            // playerInfo : authenticated user information.
            // Example of retrieving email information for ProviderType.GOOGLE
            Dictionary<AuthV4.ProviderType, AuthV4.ProviderInfo> providerInfoData = playerInfo.providerInfoData;
            AuthV4.ProviderInfo providerInfo = providerInfoData[AuthV4.ProviderType.GOOGLE];
            string email = providerInfo.providerEmail;
        }
});

#include "HiveAuthV4.h"

FHiveAuthV4::SignIn(EHiveProviderType::GOOGLE,
                                        FHiveAuthV4OnSignInDelegate::CreateLambda([this](const FHiveResultAPI& Result, const FHivePlayerInfo& PlayerInfo) {

        if (Result.IsSuccess()) {
                // Call succeeded (PlayerInfo: authenticated user information)

                // Example of retrieving email information for EHiveProviderType::GOOGLE
                TMap<EHiveProviderType, FHiveProviderInfo> ProviderInfoData = PlayerInfo.ProviderInfoData;
                if (const FHiveProviderInfo* ProviderInfo = ProviderInfoData.Find(EHiveProviderType::GOOGLE)) {
                        FString Email = ProviderInfo->ProviderEmail;
                }
        }
}));

#include <HIVE_SDK_Plugin/HIVE_CPP.h>
    AuthV4::signIn(ProviderType::GOOGLE, [=](ResultAPI const & result, PlayerInfo const & playerInfo) {
        if (result.isSuccess()) {
            // Call successful
            // playerInfo : Authenticated user information.

            // Example of retrieving email information for ProviderType::GOOGLE
            map<ProviderType, ProviderInfo> providerInfoData = playerInfo.providerInfoData;
            ProviderInfo providerInfo = providerInfoData[ProviderType::GOOGLE];
            string email = providerInfo.providerEmail;
        }
});

import com.hive.AuthV4
    import com.hive.ResultAPI
    AuthV4.signIn(AuthV4.ProviderType.GOOGLE, object : AuthV4.AuthV4SignInListener {
        override fun onAuthV4SignIn(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {
            if (result.isSuccess) {
                // Call succeeded
                // playerInfo: Authenticated user information
                // Example of retrieving email information for ProviderType.GOOGLE
                if (playerInfo != null) {
                    val providerInfoData = playerInfo.providerInfoData
                    val providerInfo = providerInfoData[AuthV4.ProviderType.GOOGLE]
                    if (providerInfo != null) {
                        val email = providerInfo.providerEmail
                    }
                }
            }
        }
})

import com.hive.AuthV4;
    import com.hive.ResultAPI;
    AuthV4.INSTANCE.signIn(AuthV4.ProviderType.GOOGLE, (result, playerInfo) -> {
        if (result.isSuccess()) {
            // Call successful
            // playerInfo: authenticated user information
            // Example of retrieving email information for ProviderType.GOOGLE
            if (playerInfo != null) {
                HashMap<AuthV4.ProviderType, AuthV4.ProviderInfo> providerInfoData = playerInfo.getProviderInfoData();
                AuthV4.ProviderInfo providerInfo = providerInfoData.get(AuthV4.ProviderType.GOOGLE);
                if (providerInfo != null) {
                    String email = providerInfo.getProviderEmail();
                }
            }
        }
});

import HIVEService
    AuthV4Interface.signIn(.Google) { result, playerInfo in
        if result.isSuccess() {
            // Call successful
            // playerInfo: Authenticated user information.

            // Example of retrieving Google email information
            if
                let playerInfo = playerInfo,
                let providerInfo = playerInfo.providerInfoData["GOOGLE"] {
                    let email = providerInfo.providerEmail
            }
        }
}

#import <HIVEService/HIVEService-Swift.h>
    [HIVEAuthV4 signIn:HIVEProviderTypeGoogle handler:^(HIVEResultAPI *result, HIVEPlayerInfo *playerInfo) {
        if ([result isSuccess]){
            // Call succeeded
            // playerInfo: Authenticated user information.

            // Example of retrieving email information for HIVEProviderTypeGoogle
            if(playerInfo != nil) {
                HIVEProviderInfo *providerInfo = playerInfo.providerInfoData[@"GOOGLE"];
                if(providerInfo != nil){
                    NSString *email = providerInfo.providerEmail;
                }
            }
        }
}];

Check IdP account logged in on device¶

Automatic login uses only the authentication token key of the saved PlayerID, while explicit login logs into accounts linked to multiple IdPs. In both cases, the IdP account of the logged-in PlayerID may differ from the IdP account logged into the actual device (DevicePlayer). Guidance will be provided to unify the two accounts in preparation for future achievements or leaderboard usage.

• Check UI for DevicePlayer provided by SDK

Here is an example code to check IdP information.

using hive;
    AuthV4.ProviderType providerType = AuthV4.ProviderType.GOOGLE;
    AuthV4.Helper.syncAccount (providerType, delegate (ResultAPI result, AuthV4.PlayerInfo playerInfo) {

        switch (result.code) {
            case ResultAPI.Code.Success:
                // Normal
                break;
            case ResultAPI.Code.AuthV4ConflictPlayer:
                // Account conflict
                // ex) When using Hive UI
                // AuthV4.Helper.showConflict(...);
                // or
                // ex) When implementing GameUI
                // AuthV4.Helper.resolverConflict(...);// When selecting current user
                // AuthV4.Helper.switchAccount(...);// When selecting user switch
                break;
            default:
                // Other exceptions
                break;
        }
});

#include "HiveAuthV4.h"

FHiveAuthV4::Helper::SyncAccount(ProviderType, FHiveAuthV4HelperDelegate::CreateLambda([this](const FHiveResultAPI& Result, const TOptional<FHivePlayerInfo>& PlayerInfo) {

        switch (Result.Code) {
                case FHiveResultAPI::ECode::Success:
                        // Normal response
                        break;
                case FHiveResultAPI::ECode::AuthV4ConflictPlayer:
                        // Account conflict
                        // ex) When using Hive UI
                        // FHiveAuthV4::Helper::ShowConflict()
                        // ex) When implementing Game UI
                        // FHiveAuthV4::Helper::ResolveConflict() // Current user selection
                        // FHiveAuthV4::Helper::SwitchAccount() // User switch selection
                        break;
                default:
                        // Other exceptional situations
                        break;
        }
}));

#include <HIVE_SDK_Plugin/HIVE_CPP.h>
    using namespace std;
    using namespace hive;
    ProviderType providerType = ProviderType::GOOGLE;
    AuthV4::Helper::syncAccount(providerType, [=](ResultAPI const & result, shared_ptr<PlayerInfo> playerInfo) {

        switch (result.code) {
          case ResultAPI::Success:
            // Normal
            break;
          case ResultAPI::AuthV4ConflictPlayer:
            // Account conflict
            // ex) When using Hive UI
            // AuthV4::Helper::showConflict(...);
            // or
            // ex) When implementing GameUI
            // AuthV4::Helper::resolverConflict(...);// When selecting the current user
            // AuthV4::Helper::switchAccount(...);// When selecting to switch user
            break;
          default:
            // Other exceptions
            break;
         }
});

import com.hive.AuthV4
    import com.hive.ResultAPI
    val providerType = AuthV4.ProviderType.GOOGLE
    AuthV4.Helper.syncAccount(providerType, object : AuthV4.Helper.AuthV4HelperListener {
        override fun onAuthV4Helper(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {
            when (result.code) {
                ResultAPI.Code.Success -> {
                    // Normal
                }
                ResultAPI.Code.AuthV4ConflictPlayer -> {
                    // Account conflict
                    // ex) When using Hive UI
                    // AuthV4.Helper.showConflict(...);
                    // or
                    // ex) When implementing GameUI
                    // AuthV4.Helper.resolverConflict(...);// When selecting current user
                    // AuthV4.Helper.switchAccount(...);// When selecting user switch
                }
                else -> {
                    // Other exceptions
                }
            }
        }
})

import com.hive.AuthV4;
    import com.hive.ResultAPI;
    AuthV4.ProviderType providerType = AuthV4.ProviderType.GOOGLE;
    AuthV4.Helper.INSTANCE.syncAccount(providerType, (result, playerInfo) -> {
        switch (result.getCode()) {
            case Success:
                // Normal
                break;
            case AuthV4ConflictPlayer:
                // Account conflict
                // ex) When using Hive UI
                // AuthV4.Helper.INSTANCE.showConflict(...);
                // or
                // ex) When implementing GameUI
                // AuthV4.Helper.INSTANCE.resolverConflict(...);// When selecting current user
                // AuthV4.Helper.INSTANCE.switchAccount(...);// When selecting user switch
                break;
            default:
                // Other exceptions
                break;
        }
});

import HIVEService
    let providerType: ProviderType = .Google
    AuthV4Interface.helper().syncAccount(providerType) { result, playerInfo in
        switch result.getCode() {
          case .success:
            // Normal
          case .authV4ConflictPlayer:
            // Account conflict
            // ex) When using Hive UI
            // AuthV4Interface.helper().showConflict(...);
            // or
            // ex) When implementing GameUI
            // AuthV4Interface.helper().resolverConflict(...);// When selecting current user
            // AuthV4Interface.helper().switchAccount(...);// When selecting user switch
          default:
            // Other exceptions
            break
        }
}

#import <HIVEService/HIVEService-Swift.h>
    HIVEProviderType providerType = HIVEProviderTypeGoogle
    [[HIVEAuthV4 helper] syncAccount: providerType handler: ^(HIVEResultAPI *result, HIVEPlayerInfo *playerInfo) {
        switch ([result getCode]) {
            case HIVEResultAPICodeSuccess:
                // Success
                break;
            case HIVEResultAPICodeAuthV4ConflictPlayer:
                // Account conflict
                // ex) When using Hive UI
                // [[HIVEAuthV4 helper] showConflict: ...];
                // or
                // ex) When implementing GameUI
                // [[HIVEAuthV4 helper] resolverConflict:...];// When selecting current user
                // [[HIVEAuthV4 helper] switchAccount:...];// When selecting user switch
                break;
            default:
                // Other exceptions
                break;
        }
}];

Guest Login¶

The guest login feature allows users to play the game in guest mode without selecting an IdP. Guests can be selected from the explicit login UI provided by the Hive SDK, or if customized directly in the game, guest login can also be implemented. The Windows environment does not support guest login.

When logging in as a guest, you must adhere to the following policies.

Guest login policy¶

• Implement the game so that both IdP authenticated users and guest users can use it in the same way. Even when logging in as a guest, most features of the Hive platform can be utilized. Therefore, please ensure that users logged in as guests can use the game in the same way as IdP linked users. For example, guest users should also be able to purchase items and make payments within the game.
  • Do not provide a logout function for guest users. If a user logs out after logging in as a guest, they will no longer be able to log in with the same PlayerID. Therefore, when a user is logged in as a guest, do not provide a logout button to prevent them from logging out.
  • Prohibition of guest login policy in China When using a Chinese IP, only users who have undergone real-name authentication can recharge and consume resources (effective from May 1, 2017), so guest logins are not included in the list of IdPs that can log in with a Chinese IP.

To perform guest login, call the signIn() method with ProviderType.GUEST as a parameter.
Here is an example code for performing guest login.

using hive;
    AuthV4.signIn(AuthV4.ProviderType.GUEST, (ResultAPI result, AuthV4.PlayerInfo playerInfo) => {
        if (result.isSuccess()) {
            // Authentication successful
            // playerInfo: Authenticated user information
        }
});

#include "HiveAuthV4.h"

FHiveAuthV4::SignIn(EHiveProviderType::GUEST,
                                        FHiveAuthV4OnSignInDelegate::CreateLambda([this](const FHiveResultAPI& Result, const FHivePlayerInfo& PlayerInfo) {

        if (Result.IsSuccess()) {
                // Call successful (PlayerInfo: authenticated user information)
        }
}));

#include <HIVE_SDK_Plugin/HIVE_CPP.h>
    using namespace std;
    using namespace hive;
    AuthV4::signIn(ProviderType::GUEST, [=](ResultAPI const & result, PlayerInfo const & playerInfo) {
        if (result.isSuccess()) {
            // Authentication successful
            // playerInfo: Authenticated user information
        }
});

import com.hive.AuthV4
    import com.hive.ResultAPI
    AuthV4.signIn(AuthV4.ProviderType.GUEST, object : AuthV4.AuthV4SignInListener {
        override fun onAuthV4SignIn(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {
            if (result.isSuccess) {
                // Authentication successful
                // playerInfo: Authenticated user information
            }
        }
})

import com.hive.AuthV4;
    import com.hive.ResultAPI;
    AuthV4.INSTANCE.signIn(AuthV4.ProviderType.GUEST, (result, playerInfo) -> {
        if (result.isSuccess()) {
            // Authentication successful
            // playerInfo: Authenticated user information
        }
});

import HIVEService
    AuthV4Interface.signIn(.Guest) { result, playerInfo in
        if result.isSuccess() {
            // Authentication successful
            // playerInfo: Authenticated user information
        }
}

#import <HIVEService/HIVEService-Swift.h>
    [HIVEAuthV4 signIn: HIVEProviderTypeGuest handler: ^(ResultAPI *result, HIVEPlayerInfo *playerInfo) {
        if ([result isSuccess]) {
            // Authentication successful
            // playerInfo: Authenticated user information
        }
}];

Custom login¶

Custom login is a feature that allows you to implement login with an IdP integrated with the game itself, in addition to the IdP provided by Hive. Try creating an authentication key (authKey) to use when calling the custom login API according to Authenticate v4 Custom Authentication.

After calling the custom login API, you can access the customProviderInfoData data through the instance of the PlayerInfo class received as a callback to check the information of the custom logged-in user. The ProviderType (enum) of customProviderInfoData is set to CUSTOM uniformly, and it can be distinguished in detail by the ProviderName (String).

The information of the IdP that implemented custom login in the game is not included in the results of calling the setup() and showSignIn() methods of the AuthV4 class.

If you have received playerId and playerToken after the first execution of the custom login, the Result API of authV4SessionExist(code) will be delivered as a callback when the custom login API is recalled. In this case, you should call signIn() with ProviderType.Auto as a parameter to proceed with automatic login using the already logged-in account. Please refer to the example code below.

The connect() and disconnect() methods of the AuthV4 class do not support additional integration and disconnection of custom login IdP. Additional integration and disconnection of custom login IdP are supported by the connectWithAuthKey() and disconnectWithName() methods.

This is an example code for implementing custom login.

// Twitter login implemented directly in the game
    Game.Login("CUSTOM_TWITTER", (string authKey) => {
    AuthV4.signInWithAuthKey(authKey, (ResultAPI result, PlayerInfo playerInfo) => {
        if (result.isSuccess()) {
            Dictionary<string, ProviderInfo> customProviderInfoData = playerInfo.customProviderInfoData;
            ProviderInfo providerInfo = customProviderInfoData["CUSTOM_TWITTER"];
            // Check the following user linkage information
            providerInfo.providerType;     // ProviderType.CUSTOM, custom types are fixed so need to distinguish by providerName
            providerInfo.providerName;   // "CUSTOM_TWITTER"
            providerInfo.providerUserId;  // User id used for the directly implemented Twitter login
            return;
        }
        else if (result.code == ResultAPI.Code.AuthV4SessionExist) {
            // If playerId and playerToken have already been issued and automatic login is needed
            // TODO: AuthV4.signIn(ProviderType.AUTO, (ResultAPI _result, PlayerInfo playerInfo) => {});
        }
        else if (result.code == ResultAPI.Code.AuthV4NotInitialized) {
            // TODO: SDK initialization needed
        }
        else if (result.code == ResultAPI.Code.AuthV4InvalidParam) {
            // TODO: Check if the value of the provided authKey is NULL or empty
        }
        else if (result.needExit()) {
            // TODO: Implement app exit functionality
            // e.g. Application.Quit();
        }
    });
});

#include "HiveAuthV4.h"

// Implemented Twitter login directly in the game with "CUSTOM_TWITTER" type
void GameLogin(const FString& AuthKey)
{
        FHiveAuthV4::SignInWithAuthKey(AuthKey, FHiveAuthV4OnSignInDelegate::CreateLambda([this](const FHiveResultAPI& Result, const FHivePlayerInfo& PlayerInfo) {

                if (Result.IsSuccess()) {
                        TMap<FString, FHiveProviderInfo> CustomProviderInfoData = PlayerInfo.CustomProviderInfoData;
                        if (const FHiveProviderInfo* ProviderInfo = CustomProviderInfoData.Find(TEXT("CUSTOM_TWITTER"))) {
                                EHiveProviderType ProviderType = ProviderInfo->ProviderType; // EHiveProviderType::CUSTOM, custom types have fixed Type
                                FString ProviderName = ProviderInfo->ProviderName; // Need to distinguish by ProviderName
                                FString ProviderUserId = ProviderInfo->ProviderUserId; // User id used in the custom Twitter login
                        }
                } else if (Result.NeedExit()) {
                        // TODO: Implement app exit functionality
                        // e.g.) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
                } else if (Result.Code == FHiveResultAPI::ECode::AuthV4SessionExist) {
                        // If playerId and playerToken have already been issued and automatic login is needed
                        // TODO: FHiveAuthV4.SignIn(EHiveProviderType::GUEST, Delegate);
                } else if (Result.Code == FHiveResultAPI::ECode::AuthV4NotInitialized) {
                        // TODO: SDK initialization needed
                } else if (Result.Code == FHiveResultAPI::ECode::AuthV4InvalidParam) {
                        // TODO: Check if the value of the provided authKey is empty
                }
        }));
}

using namespace std;
    using namespace hive;
    // Twitter login implemented directly in the game
    Game::Login("CUSTOM_TWITTER", [=](string authKey) {
    AuthV4::signInWithAuthKey(authKey, [=](ResultAPI const & result, PlayerInfo const & playerInfo) {
        if (result.isSuccess()) {
            map<string, ProviderInfo> customProviderInfoData = playerInfo.customProviderInfoData;
            ProviderInfo providerInfo = customProviderInfoData["CUSTOM_TWITTER"];
            // Check the following user linkage information
            providerInfo.providerType; // ProviderType::CUSTOM, custom types are fixed, so need to distinguish by providerName
            providerInfo.providerName; // "CUSTOM_TWITTER"
            providerInfo.providerUserId; // User id used for the custom Twitter login
            return;
        }
        else if (result.code == ResultAPI::Code::AuthV4SessionExist) {
            // If playerId and playerToken have already been issued and automatic login is needed
            // TODO: AuthV4.signIn(ProviderType::AUTO, [=](ResultAPI const & _result, PlayerInfo const & playerInfo) {});
        }
        else if (result.code == ResultAPI::Code::AuthV4NotInitialized) {
            // TODO: SDK initialization needed
        }
        else if (result.code == ResultAPI::Code::AuthV4InvalidParam) {
            // TODO: Check if the value of the provided authKey is NULL or empty
        }
        else if (result.needExit()) {
            // TODO: Implement app exit functionality
            // For Cocos2d-x engine users
            // Example) exit(0);
            // For Unreal engine users
            // Example) UKismetSystemLibrary::QuitGame(GetWorld(), nullptr, EQuitPreference::Quit, false);
        }
    });
});

// Twitter login implemented directly in the game
    Game.Login("CUSTOM_TWITTER") { authKey: String ->

    AuthV4.signInWithAuthKey(authKey, object : AuthV4.AuthV4SignInListener {
            override fun onAuthV4SignIn(result: ResultAPI, playerInfo: AuthV4.PlayerInfo?) {

                    if (result.isSuccess && playerInfo != null) {
                            playerInfo.customProviderInfoData["CUSTOM_TWITTER"]?.let { providerInfo ->
                                    providerInfo.providerType   // ProviderType.CUSTOM, custom types are fixed, so need to distinguish by providerName
                                    providerInfo.providerName   // "CUSTOM_TWITTER"
                                    providerInfo.providerUserId // User id used for the custom Twitter login
                            }
                    }
                    else if (result.needExit()) {
                            // TODO: Implement app exit functionality
                            // e.g.) exitProcess(0)
                    }
                    else if (result.code == ResultAPI.Code.AuthV4SessionExist) {
                            // If playerId and playerToken have already been issued and automatic login is needed
                            // TODO: AuthV4.signIn(AuthV4.ProviderType.AUTO, authV4SignInListener)
                    }
                    else if (result.code == ResultAPI.Code.AuthV4NotInitialized) {
                            // TODO: SDK initialization required
                    }
                    else if (result.code == ResultAPI.Code.AuthV4InvalidParam) {
                            // TODO: Check if the value of the provided authKey is NULL or empty
                    }
            }
    })

    }

// Twitter login implemented directly in the game
    Game.Login("CUSTOM_TWITTER") { authKey: String ->
            AuthV4.INSTANCE.signInWithAuthKey(authKey, new AuthV4.AuthV4SignInListener() {
                    @Override
                    public void onAuthV4SignIn(@NonNull ResultAPI result, @Nullable AuthV4.PlayerInfo playerInfo) {

                            if(result.isSuccess() && playerInfo != null) {
                                    HashMap<String, AuthV4.ProviderInfo> customProviderInfoData = playerInfo.getCustomProviderInfoData();
                                    AuthV4.ProviderInfo providerInfo = customProviderInfoData.get("CUSTOM_TWITTER");
                                    // Check the following user linkage information
                                    if (providerInfo != null){
                                            providerInfo.getProviderType(); // AuthV4.ProviderType.CUSTOM, custom types are fixed by Type so need to distinguish by providerName
                                            providerInfo.getProviderName(); // "CUSTOM_TWITTER"
                                            providerInfo.getProviderUserId(); // User id used in the custom Twitter login
                                    }
                            } else if (result.needExit()) {
                                    // TODO: Implement app exit functionality
                                    // e.g.) System.exit(0);
                            } else if (result.getCode() == ResultAPI.Code.AuthV4SessionExist) {
                                    // If playerId and playerToken have already been issued and automatic login is needed
                                    // TODO: AuthV4.signIn(AuthV4.ProviderType.AUTO, authV4SignInListener)
                            } else if (result.getCode() == ResultAPI.Code.AuthV4NotInitialized) {
                                    // TODO: SDK initialization needed
                            } else if (result.getCode() == ResultAPI.Code.AuthV4InvalidParam) {
                                    // TODO: Check if the value of the provided authKey is NULL or empty
                            }
                    }
            });
    }

// Twitter login implemented directly in the game
    Game.login("CUSTOM_TWITTER") { (authKey) in
    AuthV4Interface.signInWithAuthKey(authKey) { (result, playerInfo) in
            if result.isSuccess() {
                    let customProviderInfoData = playerInfo?.customProviderInfoData;
                    let providerInfo = customProviderInfoData?["CUSTOM_TWITTER"]
                    // Check the following user linkage information
                    providerInfo?.providerType;     // AuthProviderType, custom types are fixed so need to distinguish by providerName
                    providerInfo?.providerName;     // "CUSTOM_TWITTER"
                    providerInfo?.providerUserId;   // User id used for the custom Twitter login
                    return
            }
            else if result.getCode() == .authV4SessionExist {
                    // If playerId and playerToken have already been issued and auto-login is needed
                    // TODO: AuthV4Interface.signIn(.auto) { (result, playerInfo) in }
            }
            else if result.getCode() == .authV4NotInitialized {
                    // TODO: SDK initialization needed
            }
            else if result.getCode() == .authV4invalidParam {
                    // TODO: Check if the value of the provided authKey is nil or empty
            }
            else if result.needExit() {
                            // TODO: Implement app exit functionality.
                    // Example) exit(0)
            }
    }
    }
