PG payment

The following describes the PG payment features and how to process receipts.

Before applying PG payment, check the PG payment policy and register the necessary information in Hive Console according to the pre-work of the PG payment Hive Console guide.

PG payment features¶

The main features of PG payment are as follows.

• PG payment operates based on IAP v4 and PG Payment API, and is processed asynchronously through the web browser provided by the payment agency (PG).

• Orders for which payment has been completed must be processed for product payment completion through the transactionFinish(marketPid) API.

• If you want to repurchase a product for which payment has been completed but payment completion processing has not been completed, the payment will not proceed. You can repurchase after the payment completion processing of the previously purchased product.

• If you attempt to purchase additional products for which payment has not been completed, such as when you open multiple payment windows while payment has not been completed, only the first payment will be completed, and the remaining purchases will be automatically canceled even if they are paid.

• Payments may be canceled at the game server's discretion even if a payment completion processing request is made.

PC PG payment¶

When you proceed with PG payment in a PC environment, the payment request screen appears in a new window as shown below.

Mobile PG payment¶

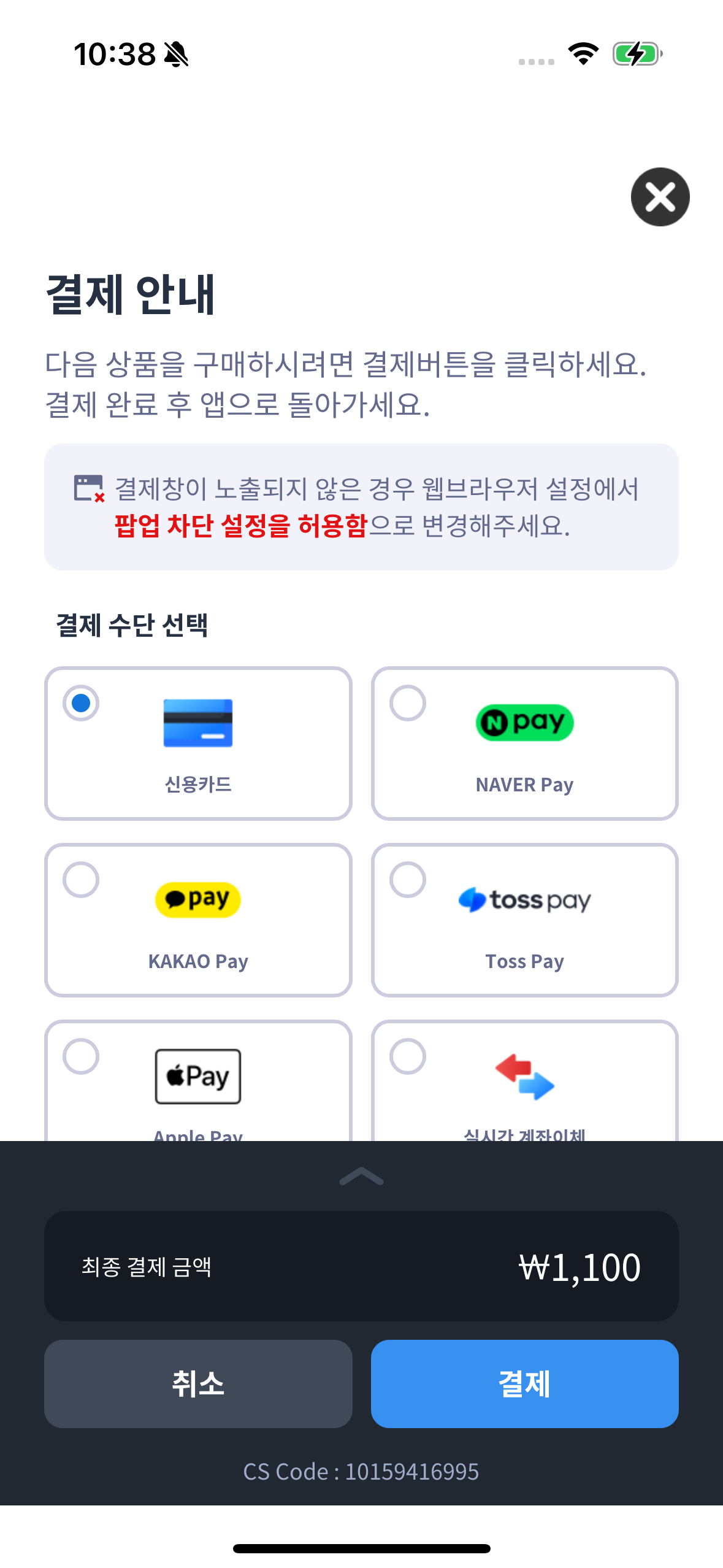

When you proceed with PG payment in a mobile environment, the payment request screen is displayed through an in-app webview.

Prerequisites¶

To use mobile PG payment, you need to add the HiveStore module to your project. Refer to the guidance below according to your SDK's development engine and target OS.

SDK Native Android¶

Add the HiveStore market library to the module-level build.gradle file.

implementation "com.com2us.android.hive:hive-iapv4-market-hivestore" // Hive Store(PG)

SDK Native iOS¶

Add the in-app purchase framework and PG (HiveStore) framework to the Podfile in your project directory.

pod 'HiveIAPV4', $HIVE_SDK_VERSION
pod 'HiveIAPV4HiveStore', $HIVE_SDK_VERSION // Hive Store(PG)

Unity¶

1. In the Unity editor, click Hive > ExternalDependency.
2. In Market Settings, select Hive Store.

Unreal¶

1. In the Unreal editor menu, click Edit > Project Settings.
2. In the left panel, select Hive SDK > Dependency – Android / Hive SDK > Dependency – iOS.
3. In Market, select Hive Store.

Mobile PG payment policy¶

The supported scope of mobile PG payment is limited according to platform-specific policies.

Precautions when implementing on iOS¶

On iOS, according to Apple's App Review Guidelines (Guideline 3.1.1, 3.1.1(a), 3.1.3), PG payment is supported only on the US storefront. As of May 2025, Apple updated its guidelines following a US court ruling, allowing buttons, external links, and CTAs (Call to Action) that direct users to payment methods other than in-app purchase (IAP) to be displayed without a separate Entitlement on the US storefront.

• On storefronts outside the US, displaying buttons or links that direct users to payment methods other than in-app purchase in your app will result in rejection during Apple review.
• It is recommended to branch the visibility of PG payment entry points based on the user's storefront region.

Mobile PG payment integration flow¶

The flow for integrating PG payment in a mobile environment is as follows.

Payment and receipt processing flow¶

The receipt processing flow for PC and mobile PG payment is the same, except that for mobile, there is an additional step to change the market to Hive Store before requesting a purchase.

1. (Mobile only) Call IAPV4.setMarketSelection(IAPV4Type.hiveStore) to change the market to Hive Store

2. Call IAPV4.purchase(marketPid, iapPayload, onIAPV4PurchaseCB) to request a purchase

   Warning

   If you have registered a URL for payment completion information in Hive Console Billing > Payment Environment Settings > PG Settings > Optional Feature Settings, you must delete this URL first.

3. When the product purchase is successfully completed, the receipt information (bypassInfo) is received through the onIAPV4PurchaseCB callback

4. The game client sends this receipt information to the game server

5. The game server calls the Receipt Verification API to verify this receipt information

6. After successfully completing receipt verification, call IAPV4.transactionFinish to complete the product delivery process

If you did not receive the receipt information indicating that the purchase was successfully completed through the onIAPV4PurchaseCB callback in step 3 above, call IAPV4.restore to request the receipt information for undelivered items again. Then follow steps 4-6 to complete the receipt verification and product delivery process.

Multi-quantity purchase¶

PG payment supports multi-quantity purchases. By specifying the quantity when requesting a purchase, you can purchase more than one of the same in-app products in one payment.

The Hive SDK calls hive.IAPV4.purchase(marketPid, iapPayload, quantity, onIAPV4PurchaseCB) with the quantity parameter, which allows you to specify the quantity.

Example code for requesting a multi-quantity purchase is as follows.

API Reference: [hive .IAPV4.purchase](http://developers.withhive.com/HTML/v4_api_reference/Unity3D/group___i_a_p_v4.html#ga4f5a16cebe1b2b1fab22126faacafbec)

```cs
using hive;
        String marketPid = "{YOUR_PRODUCT_MARKET_PID}";
        String iapPayload = "{YOUR_CUSTOM_PAYLOAD}";
        int quantity = 3;

        IAPV4.purchase(marketPid, iapPayload, quantity, (ResultAPI result, IAPV4Receipt receipt) => {
        if (result.isSuccess()) {
                         // TODO: Request verification of receipt with received receipt
                 }
});
```

```c++

#include "HiveIAPV4.h"

FString MarketPid = TEXT("YOUR_PRODUCT_MARKET_PID");
FString IapPayload = TEXT("YOUR_CUSTOM_PAYLOAD");
int32 Quantity = 3;

FHiveIAPV4::Purchase(MarketPid, IapPayload, Quantity, FHiveIAPV4OnPurchaseDelegate::CreateLambda([this](const FHiveResultAPI& Result, const FHiveIAPV4Receipt& Receipt) {
                if (Result.IsSuccess()) {
                                // API call successful
                }
}));
```

API Reference: [IAPV4 ::purchase](http://developers.withhive.com/HTML/v4_api_reference/CPP/group___i_a_p_v4.html#ga2bff8cc9d70d0a25eaddc9d45dac86b8)

```cpp
#include <HIVE_SDK_Plugin/HIVE_CPP.h>
        using namespace std;
        using namespace hive;
        string marketPid = "{YOUR_PRODUCT_MARKET_PID}";
        string iapPayload = "{YOUR_CUSTOM_PAYLOAD}";
        int quantity = 3;
        IAPV4::purchase(marketPid, iapPayload, quantity, [=](ResultAPI const & result, IAPV4Receipt const & receipt) {
                 if (result.isSuccess()) {
                         // TODO: Request verification of receipt with received receipt
                 }
});
```

API Reference: [com.hive.IAPV4.purchase](https://developers.withhive.com/HTML/dokka/-hive%20-s-d-k%20v4/com.hive/-i-a-p-v4/purchase.html)

```kt
import com.hive.IAPV4
        import com.hive.ResultAPI
        val marketPid = "{YOUR_PRODUCT_MARKET_PID}"
        val iapPayload = "{YOUR_CUSTOM_PAYLOAD}"
        val quantity = 3
        IAPV4.purchase(marketPid, iapPayload, quantity, object : IAPV4.IAPV4PurchaseListener {
                 override fun onIAPV4Purchase(result: ResultAPI, iapV4Receipt: IAPV4.IAPV4Receipt?) {
                         if (result.isSuccess) {
                                 // call successful
                         }
                 }
})
```

API Reference: [com .hive.IAPV4.purchase](https://developers.withhive.com/HTML/v4_api_reference/Android/group___i_a_p_v4.html#gad5e467681ef02fc2ab393bad201e617c)

```java
import com.hive.IAPV4;
        import com.hive.ResultAPI;
        String marketPid = "{YOUR_PRODUCT_MARKET_PID}";
        String iapPayload = "{YOUR_CUSTOM_PAYLOAD}";
        int quantity = 3;
        IAPV4.INSTANCE.purchase(marketPid, iapPayload, quantity, (result, iapV4Receipt) -> {
                 if (result.isSuccess()) {
                         // call successful
                 }
});
```

API Reference: [HIVEIAPV4::purchase:additionalInfo:handler:](https://developers.withhive.com/documentation/hiveiapv4/iapv4interface/purchase(_:iappayload:handler:))

```swift
import HIVEService
        let marketPid = "{YOUR_PRODUCT_MARKET_PID}"
        let iapPayload = "{YOUR_CUSTOM_PAYLOAD}"
        let quantity = 3

        HIVEIAPV4.purchase(marketPid, iapPayload, quantity) { result, receipt in
                 if result.isSuccess() {
                         // TODO: Request verification of receipt with received receipt
                 }
}
```

<strong>API Reference</strong>: <a href="[cgv hive_sdk4_ios_api_ref_en]/group___i_a_p_v4.html#ga4cd19176f947717f2c7be545ed76a6e0" target="_blank" rel="noopener noreferrer">HIVEIAPV4::purchase:additionalInfo:handler:</a >

```objc
#import <HIVEService/HIVEService-Swift.h>

NSString *marketPid = @"{YOUR_PRODUCT_MARKET_PID}";
NSString *iapPayload = @"{YOUR_CUSTOM_PAYLOAD}";
NSNumber quantity = 3;

[HIVEIAPV4 purchase: marketPid iapPayload: iapPayload quantity handler: ^(HIVEResultAPI *result, HIVEIAPV4Receipt *receipt) {
        if ([result isSuccess]) {
                // TODO: Request verification of receipt with received receipt
        }
}];
```
