Dashboard

Overview

A dashboard integrates content created through the chart, funnel, and retention features onto a single page so you can analyze a series of data performance outcomes by purpose.

It enables efficient communication and collaboration by sharing analysis results within a team or organization.

What Can You Do?

Business/Marketing Users

  • If you keep key KPIs such as DAU, ARPU, and conversion rate on one screen, you can see the core status as soon as you open Analytics each morning.
  • Because you can share analysis results with team members immediately, you can significantly reduce the time spent writing separate reports.
  • If you create a dedicated dashboard with a campaign period as the date range, you can monitor performance more closely.

Data Analysts

  • Organizing dashboards by analysis purpose lets you manage your team's analytical assets systematically.
  • You can compare data from different periods side by side on the same screen.
  • With text panels, you can leave insights and comments next to charts and share analytical context with your team.

Developers

  • If you create a dedicated dashboard right after deploying a new event, you can monitor the status of the data pipeline in real time.

Quick Start

If you are creating a dashboard for the first time, follow the steps below to create your first dashboard.

  1. Click the Create button at the top, then select Dashboard.
  2. Select the workspace where you want to save the dashboard at the top.
  3. In the [Settings] tab, set the period (default/daily/weekly/monthly/hourly/minute) and date range.
  4. Click the + button in the preview area on the right.
  5. Select the panel type to add (content/text/image) and add it as a panel.
  6. Adjust the panel size and position by dragging.
  7. Click the Save button at the bottom and enter the dashboard title and description.

Note

For detailed settings such as filters, sharing, and home dashboard settings, refer to Full Features.

Full Features

Key Concepts

Concept Description
Panel Individual chart, funnel, retention, text, or image content placed on a dashboard
Dashboard Filter A condition filter applied in bulk to all panels within the dashboard

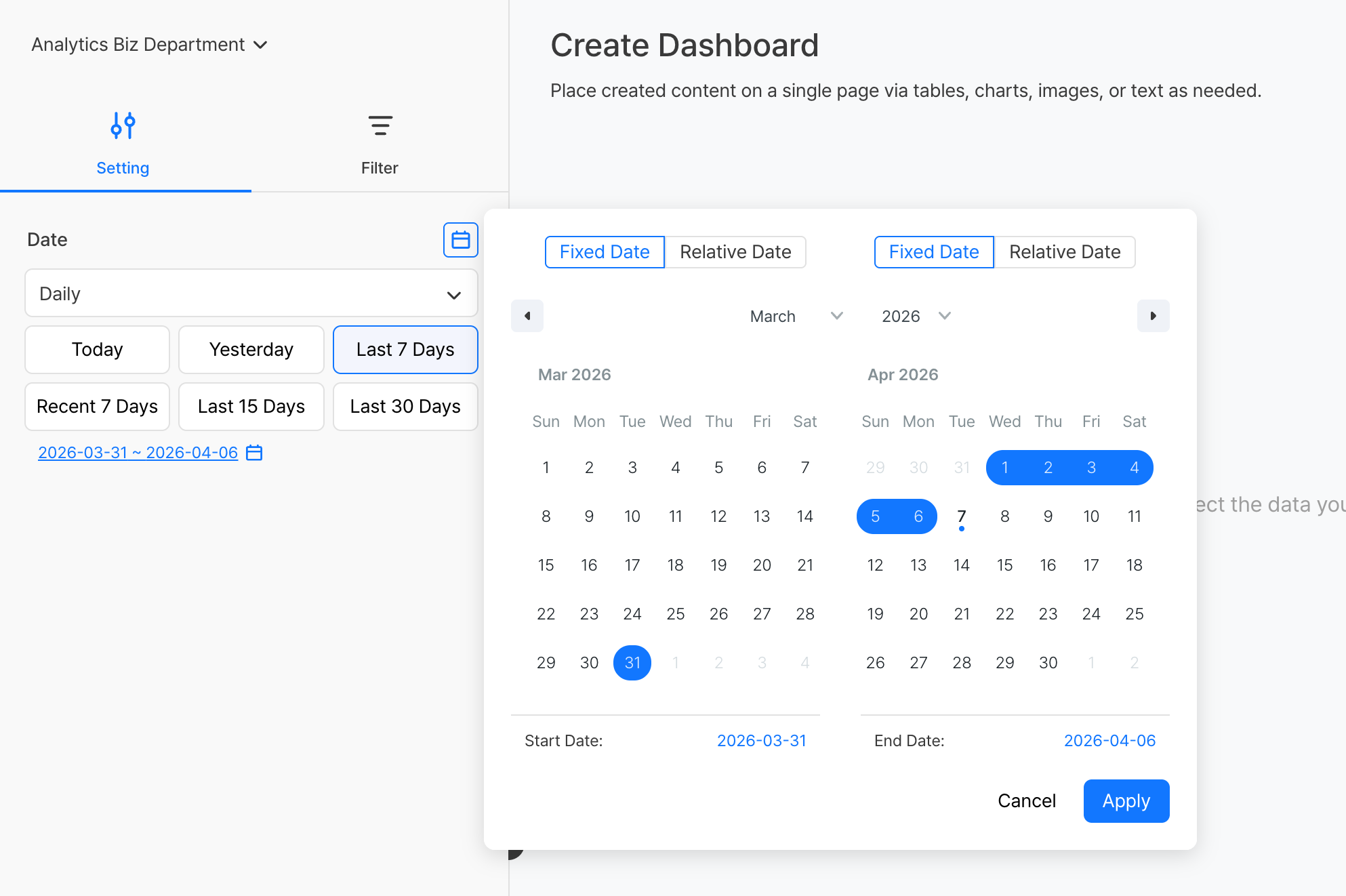

[Settings] Tab

Enter the basic dashboard information.


Item Required Description
Period Optional Time unit to apply commonly to all panels (daily/weekly/monthly/hourly/minute)
Date Range Optional Date range to apply commonly to all panels

When selecting a date range, you can use the quick select buttons or choose dates directly through the calendar button.

The Recent and Last quick select buttons use different reference dates.

Type Reference Date Example
Recent N days Calculated from today Recent 7 days -> 7 days including today
Last N days Calculated from yesterday Last 7 days -> 7 days including yesterday
Note

If you set a dashboard-level date range, the dashboard setting takes precedence over the date range of individual panels. To apply different date ranges per panel, set the period to 'default'.

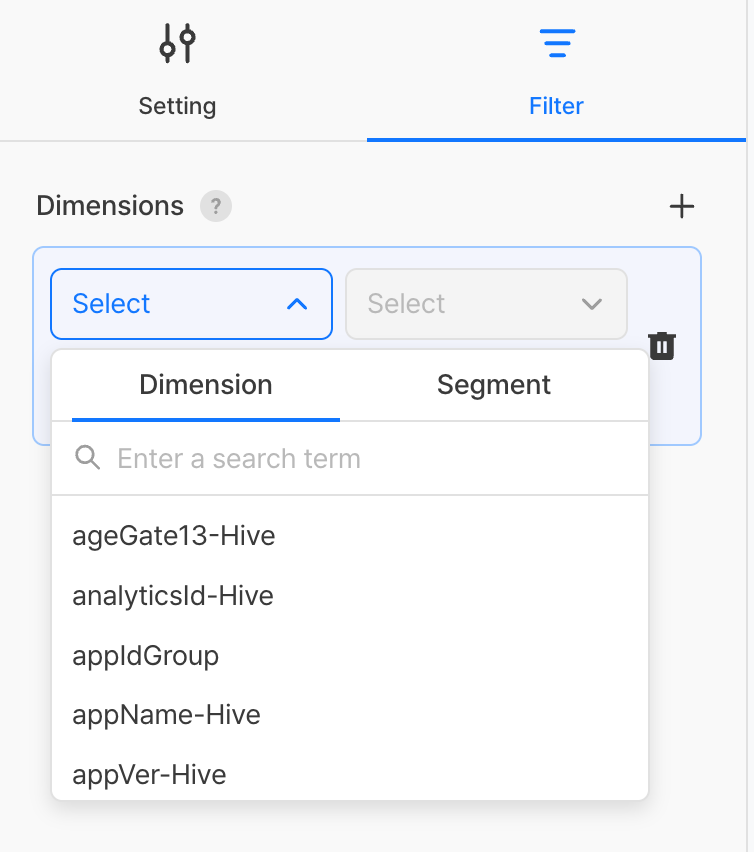

[Filter] Tab

Set common filters that apply to the entire dashboard.


  • Filters can be added by selecting either dimensions or segments, and the added filter is applied in bulk to all panels in the dashboard.
  • Filter conditions can be combined with AND / OR logical operators.
Note

The items displayed in the filter dimension expose attributes from all events used to build the panels. If a specific panel does not have that attribute, the filter will not apply to that panel.

Add and Manage Panels

Add Panel

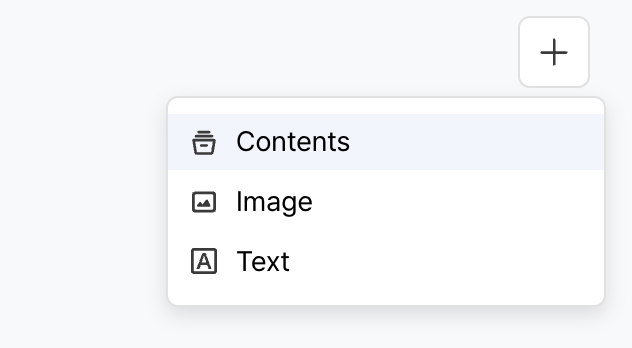

  1. Click the + button in the preview area.
  2. Select the type of panel to add.
Content Type Description
Content Select previously created chart, funnel, or retention content
Text Enter text such as analysis scope or insights
Image Upload an image file

Panel Notes

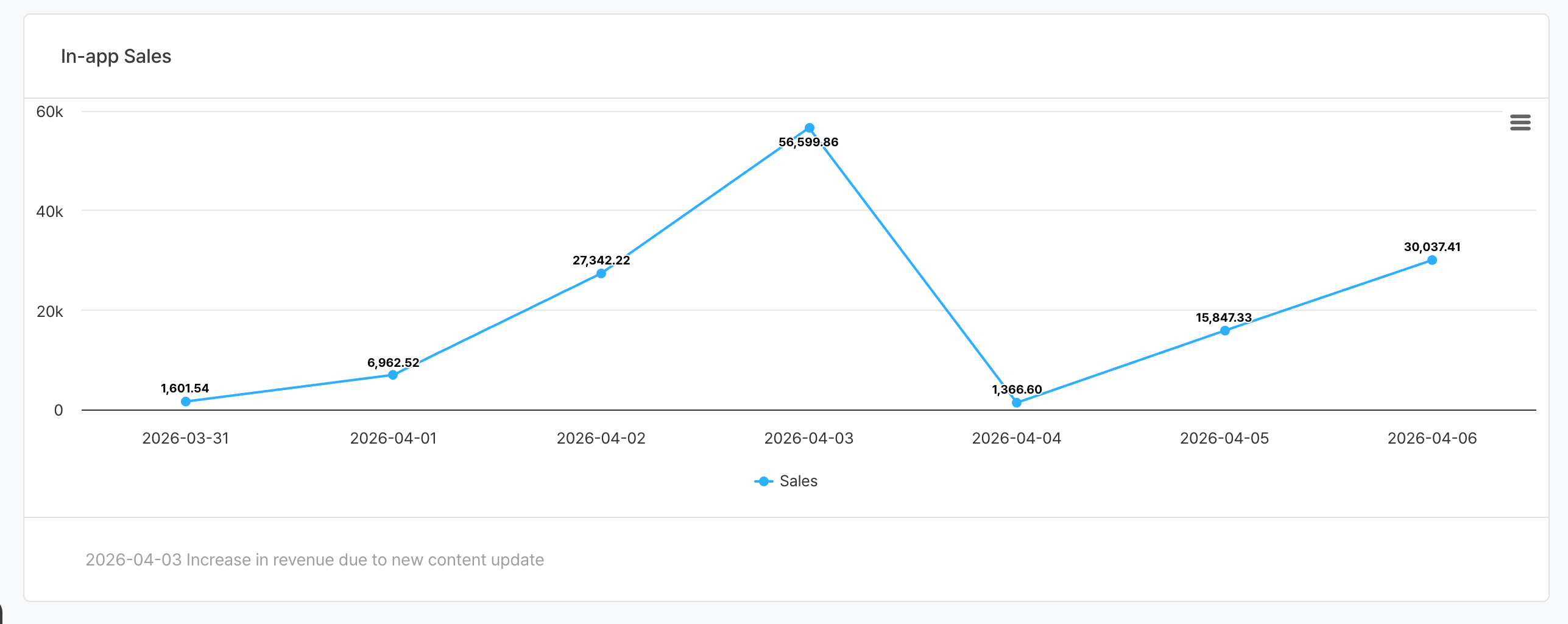

You can add notes to each panel. Use this when you want to leave chart-specific notes or analysis comments at the panel level. dashboard_04.png

  1. On the dashboard create or edit page, click the ... button on the panel where you want to add a note.
  2. Click Note and enter the content.

Resize Panels

You can place up to 4 panels per row, and freely adjust size and position by dragging.

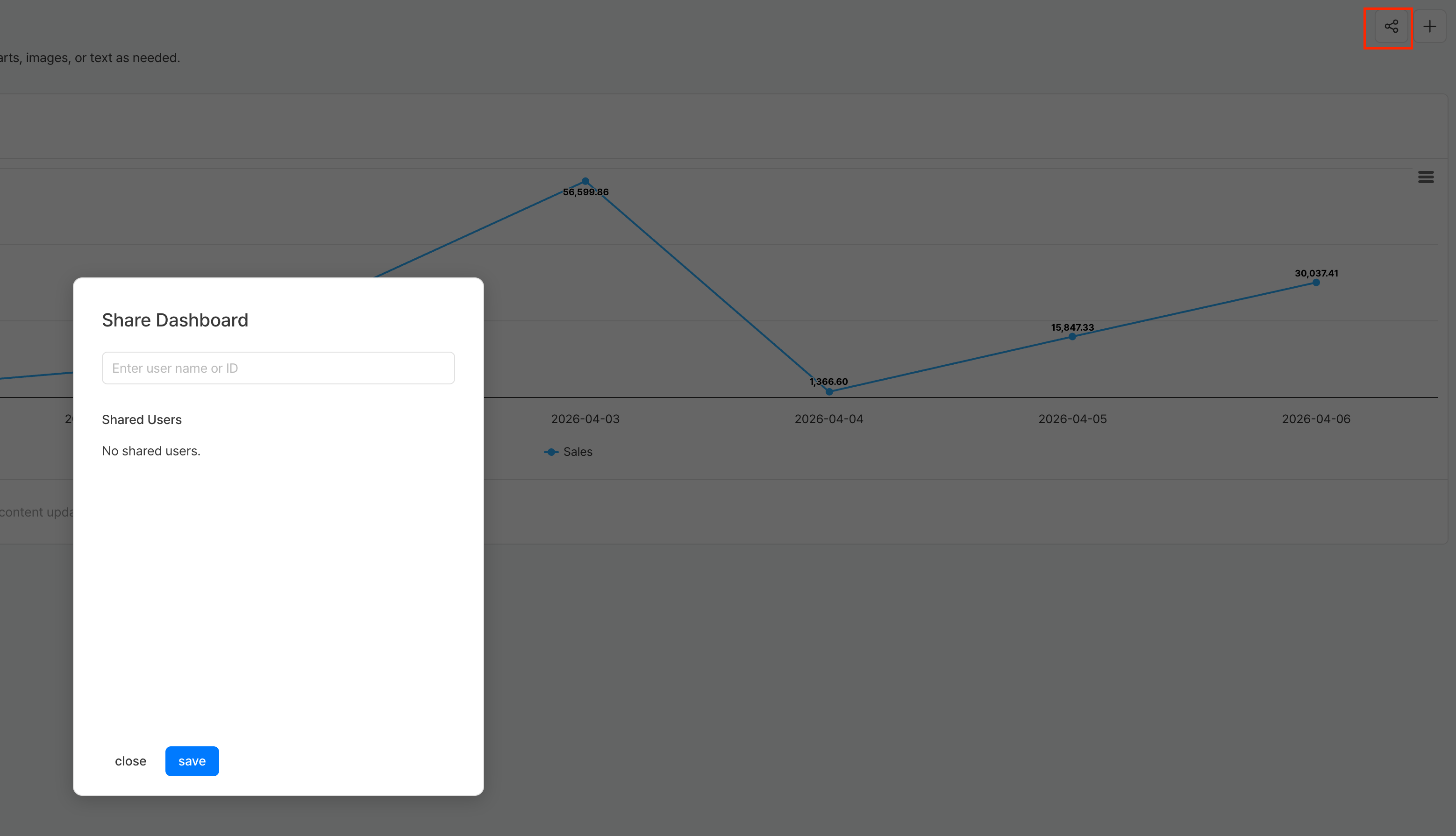

Sharing Settings

Sharing for created dashboards can be configured on the Dashboard edit page.

You can share dashboards with users in the company regardless of workspace access permissions, and shared users can access the dashboard within the granted permission scope.


Permission Description
Viewer Can view the dashboard only
Warning

Users without workspace access permissions can still access dashboards through sharing. Set sharing targets carefully.

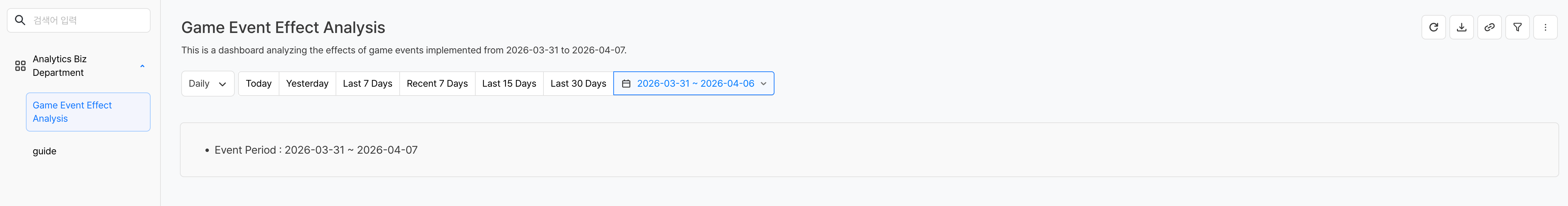

Dashboard Viewing

Switch Dashboards


You can select a workspace from the navigation sidebar on the left to switch directly to another dashboard.

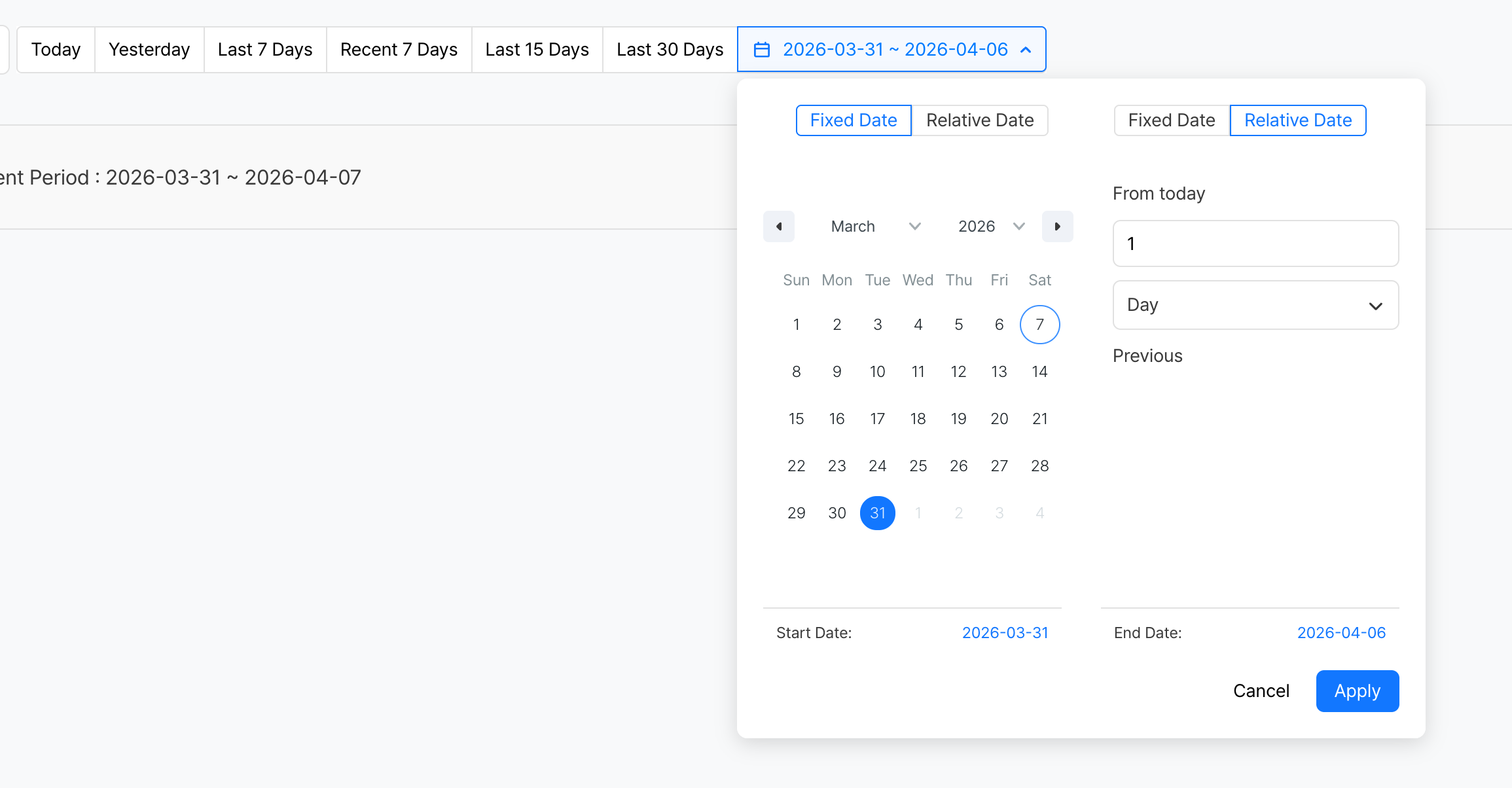

Adjust Date Range


Changing the date range on the view screen applies it to all panels in the dashboard at once. You can set it using a quick select button (for example, Last 30 days) or by entering dates directly.

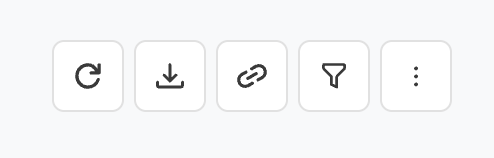

Top Action Buttons


Button Description
Refresh Reloads all dashboard data.
Download Saves the dashboard as a PDF or PNG file.
Copy Link Copies the current dashboard URL to the clipboard. You can share it quickly with other users through the link.
Filter Sets conditions that apply to all panels.
... Accesses additional functions such as editing.

Edit Dashboard

  1. On the dashboard view page, click the ... button in the top right and select Edit.
  2. Change the settings in the desired tab or layout area.
  3. Click the Save button at the bottom.

Notes & Tips

  • If the source content (chart, funnel, or retention) of a panel added to a dashboard is deleted, that panel will not be displayed.
  • Using text panels to add section dividers and descriptions of analysis purposes improves readability.
  • Home - Screen for viewing the home dashboard
  • Chart - Create charts to add to dashboards
  • Funnel - Create funnels to add to dashboards
  • Retention - Create retention analyses to add to dashboards
  • Workspace Management - Set the home dashboard
